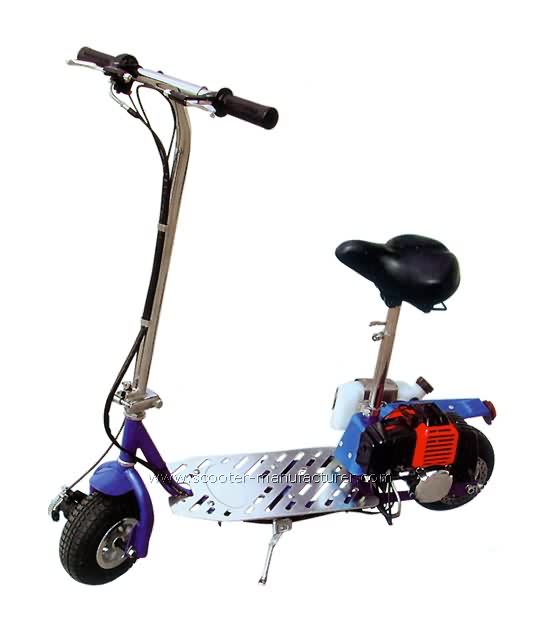

| Gas Scooter FS_G03 |
|
|
|
|
| Name: |
Gas Scooter |
| Item No.: |
FS-G03 |
| User Age: |
>12 |
| Product Size: |
107x46x100cm |
| Carton Size: |
99x33x39cm
|
| Container: |
230pcs/20'ft; 486pcs/40'ft; 550pcs/40'HQ |
| Wheel: |
9X3 inch alloy rim pneumatic rubber tyre |
| Main Material: |
Steel and alloy |
| Deck: |
alloy |
| Motor Power: |
33cc/43cc, single cylinder, air-cooled, 2-stroke |
| Driven Transmission: |
chain |
| Oil Type: |
1:25 engine oil mixing |
| Tank Capacity: |
1L |
| Ignition: |
electronic/ manual pull |
| Max Speed: |
28/42km/h |
| Max Range: |
28km |
| Brake: |
handle operate disk brakes |
| N.W./G. W.: |
19/21kg |
| Maximum Load: |
100kg |
| Colour: |
red, blue, white, silver, green, yellow, black, and etc. |
Difference between
FS-G02,G03 |
tyre size, power |
| Parts Can Be Added or replaced: |
mirror, buzzer, head light, wooden deck,1 or 2 drum brakes |
| Speed throttle, tail light, adjustable cushion seat. |
| Parts Direction |
Exploded View |
| |
 |
|
