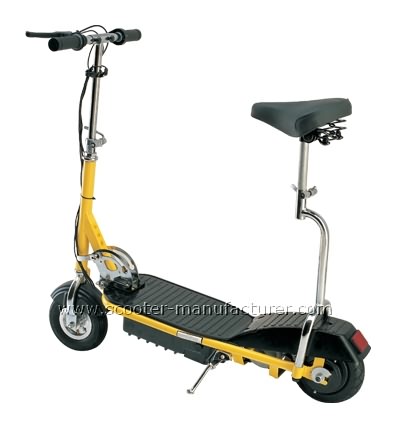

Folding Electric Scooter FS-E27
[<< First] [< Previous] [Next >] [Last >>]
Name: Electric Scooter
Item No.: FS-E27
Product Size: 115x45x95cm (inch)
Carton Size: 118x35x50cm
Container Load Capacity: 160pcs/20'ft; 330pcs/40'ft; 392pcs/40'HQ
Wheel and Diameter: 12 inch alloy rim pneumatic rubber tyre/tubeless
Material of Shell: steel, alloy, ABS
Engine: 250watt DC electric motor
Battery Capacity: 12AH, 24V
Recharge Times: 250-300
Charge Times: 3-6 hours
Driven Transmission: chain
Brake:: handle operate rear drum brake
Speed: 18km/h (mph)
Range: 20-25km (miles)
Net Weight 19kg(42lbs.)
Gross weight: 21kg(46lbs.)
Maximum Load: 120kg (265lbs.)
Difference of FS-E11 Series front T structure
Colour: red, blue, white, silver, green, yellow, black.
dash board , headlight, turn signal light, brake light, adjustable cushion saddle, folding lever
Additional Option removable box/basket, mirror, buzzer, kid's seat, backrest, spoke rim tyre
Parts Direction Exploded View
