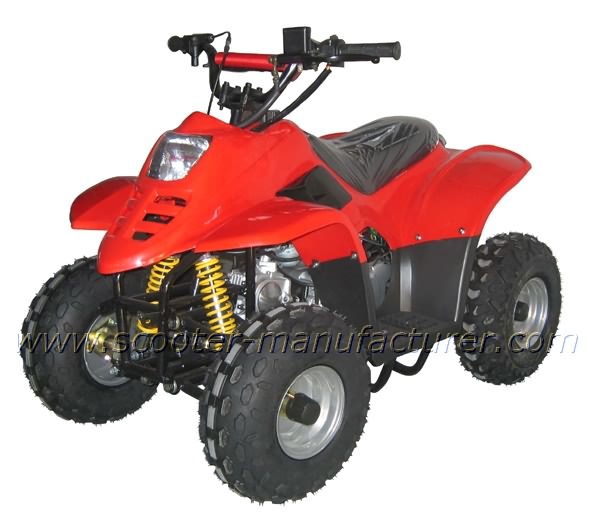

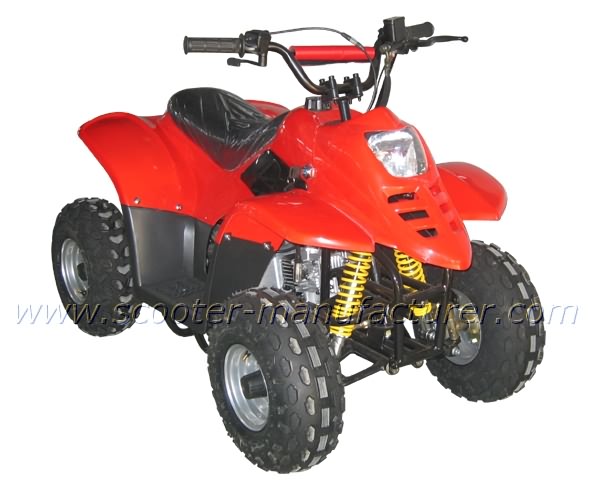

| Mini ATV AT-G07 |
|
|
|
|
| |
|
| Name: |
Mini ATV (All-terrain vehicle) |
| Item No.: |
AT-G07 |
| Product Size: |
117×67×75cm (46×26×29inch) |
| Carton Size: |
114×70×63cm |
| Container Load Capacity: |
45pcs/20'ft; 105pcs/40'ft; 120pcs/40'HQ |
| Wheel and Diameter: |
19x7- 8 / 19x8- 8 |
| Compression Ratio: |
7.0:1 |
| Engine: |
4-stroke, single cylinder, air cooling |
| Displacement: |
50cc, 70cc, 110cc |
| Tank Capacity: |
6.7 liter |
| Max Power: |
4.8Ps/6500rpm |
| Max Torque: |
4.2N.m/7000rmp |
| Ignition: |
C.D.I. (electronic) |
| Driven: |
chain |
| Transmission: |
auto clutch and auto speed switch |
| Brake: |
rear disk brake |
| Speed: |
30km/h (19mph) |
| Range: |
145km (90mile) |
| Net weight: |
79kg(174lbs.) |
| Gross Weight: |
93kg(205lbs.) |
| Maximum Load: |
90kg (200lbs.) |
| Colour: |
various |
| climbing 15 degree, 270 days warranty, reverse function optional, remote control optional |
