| Name: |

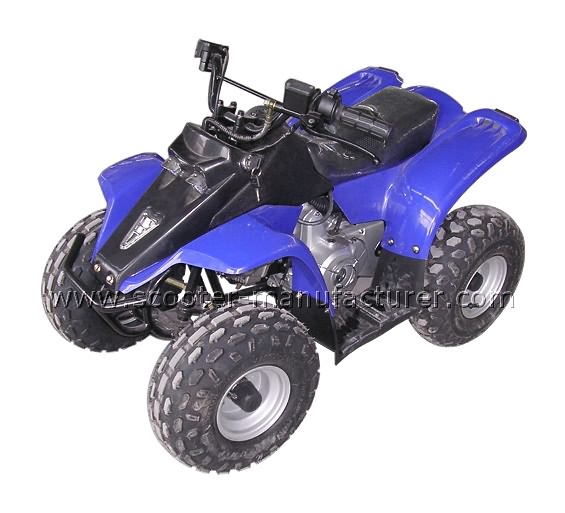

Mini ATV (All-terrain vehicle) |
| Item No.: |
AT-G02 |
| Product Size: |
112×56×73cm (44×29×22inch) |
| Carton Size: |
115×76×70cm (45×30×28inch) |
| Container Load Capacity: |
48pcs/20'ft; 102pcs/40'ft; 136pcs/40'HQ |
| Wheel and Diameter: |
14" alloy rim pneumatic rubber tyre/tubeless |
| Compression Ratio: |
7.0 : 1 |
| Engine: |
single-cylinder, 4 stroke |
| Displacement: |
50cc, 70cc |
| Tank Capacity: |
3.4 liter |
| Max Power: |
2.4kw/8500rpm |
| Max Torque: |
2.7N.m/6500r/min |
| Ignition: |
C.D.I. (electronic) / kick-back both |
| Driven: |
chain |
| Transmission: |
fully auto clutch and 4 speed semi auto |
| Brake: |
front and rear disc brake |
| Speed: |
30km/h (19mph) |
| Range: |
85km (53mile) |
| Net weight: |
63kg(139lbs.) |
| Gross Weight: |
71kg(156lbs.) |
| Maximum Load: |
90kg (200lbs.) |
| Colour: |
various |
| dual headlights, horn, climbing 15 degree, 270 days warranty, reverse function optional, remote control optional |
